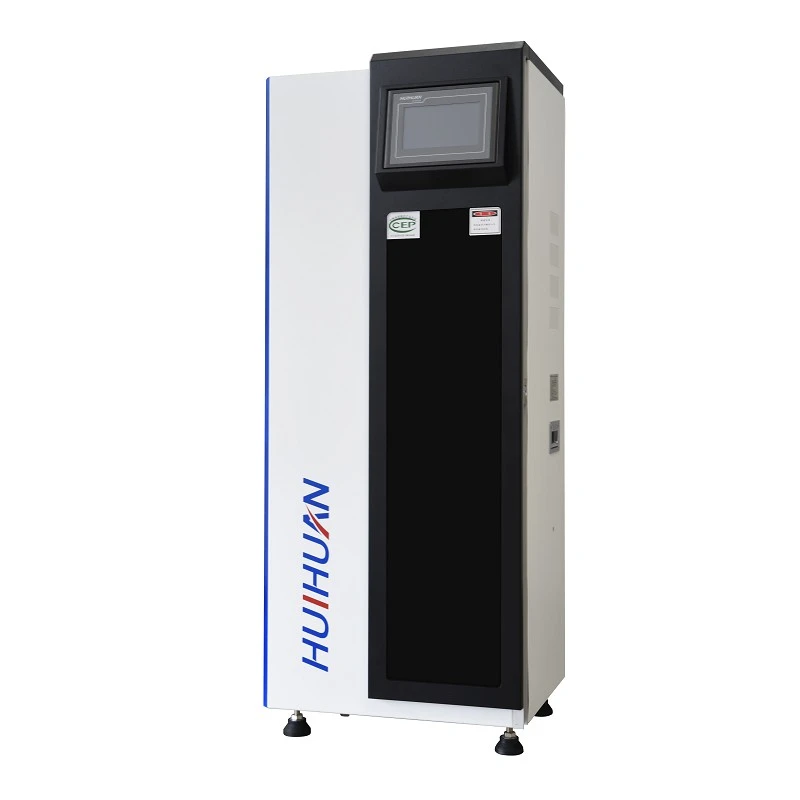

Online Ammonia Nitrogen Analyzer (NH3-N)

Measurement principle
According to HJ536-2009 "Determination of ammonia nitrogen in Water by salicylic acid spectrophotometry", Huihuan DEK-NH3-N online ammonia nitrogen analyzer (NH3-N), in the presence of nitropurna, ammonia and ammonia ions react with salicylate and hypochlorite ions to form blue compounds, and measure absorbance under a specific wavelength, so as to calculate the corresponding ammonia nitrogen concentration value.

Send Inquiry

Product Introduction

Measurement principle

According to HJ536-2009 "Determination of ammonia nitrogen in Water by salicylic acid spectrophotometry", Huihuan DEK-NH3-N online ammonia nitrogen analyzer (NH3-N), in the presence of nitropurna, ammonia and ammonia ions react with salicylate and hypochlorite ions to form blue compounds, and measure absorbance under a specific wavelength, so as to calculate the corresponding ammonia nitrogen concentration value.

Technical parameter

Range range	(0.1~10)mg/L		(10~150)mg/L
Indication error	20%		±3%
	50%	±3%
	80%
Lower limit of quantitation	≤0.15mg/L(Indication error±30%)		-
repeatability	≤2%		≤5%
24h low concentration drift	≤0.02mg/L		-
24h high concentration drift	≤1%		≤2%
Communication interface	RS232*2; RS485 can be customized.
Power supply parameter	(220±10%)VAC,(50±1%)Hz
Ambient temperature	(5~40)℃
Relative humidity	≤85%,RH

Technical characteristics

Support range customization, multi-file optional.

A new type of discharge valve has been jointly developed, which effectively reduces the interference of taking liquid and prolongs the life of the discharge valve.

Using 24-bit high precision AD chip, the measurement accuracy is greatly improved.

The initial signal of measurement and measurement can be automatically initialized, without manual adjustment, improving operation and maintenance efficiency.

The amount of reagent is greatly reduced, about 40% less than before.

The data stability is improved, which is about 30%-50% higher than before.

The system upgrade supports USB flash drive upgrade without remote operation, improving O&M efficiency.

Function description

With the function of separating clean and waste liquid, automatically diverting the cleaning liquid and waste liquid into different collection buckets;
With equal time interval measurement, whole point measurement, controlled measurement and other functions, to meet the different needs of each site;
With automatic standard sample verification function, it can be set to be executed at a regular time every day. When the verification is unqualified, the calibration will be automatically carried out, and the verification will be carried out after the calibration is finished to ensure the linear accuracy of the equipment;
With automatic cleaning function, the pipeline and digestion tank will be cleaned before and after measurement, and regular additional cleaning can be set to ensure the cleanliness of the pipeline and digestion tank;
With power-on self-test and abnormal reset functions, to ensure that the equipment automatically recovers to normal state after abnormal power failure and power-on;
With alarm functions such as insufficient reagent, heating failure, photoelectric anomaly, etc., it can ring alarm in real time and record alarm information;
With three-level rights management function, different personnel assign different operation rights to prevent equipment data distortion or failure caused by misoperation of non-professional personnel;
With operation log, process log and other recording functions, it is convenient to check the operation of equipment and personnel operation records.

Ammonium Nitrogen Analyzer

Application field

Huihuan DEK-NH3-N online ammonia nitrogen analyzer (NH3-N) is mainly used in the field of online water quality monitoring of fixed pollution sources such as industrial wastewater, domestic sewage and aquaculture wastewater discharge.

Pre-sales Service

After the customer proposes system requirements, our company will assign dedicated personnel to thoroughly understand the customer's needs and the actual on-site conditions of the enterprise, and collaborate with the user to develop a system solution.
Provide equipment consultation and work with the user to select and configure the appropriate equipment.
Promptly identify issues, offer technical support, and assist the user in completing the rectification work for system construction.
